XMS robot workstation

延伸產品:: 1600x800 stationary

產品料號: RBTX-ITEM-0018

The compact XMS Robot Workstation offers plenty of space for maximum productivity. The item Groove Plate creates a work surface that can be used in a variety of ways. The electrical equipment can be stowed away safely and protected from dust in the base cabinet. The innovative profiles from the XMS series are ideal for neatly routing cables inside the profiles. The robot can be operated using switches integrated into the profiles.

Note: Depending on the scaling of the solution, operating mode and robot model, the stability and design must be checked. On request, item will be happy to help you customise this application to the individual requirements of your project.

通常交貨時間: 3 週

Weight
156
kg

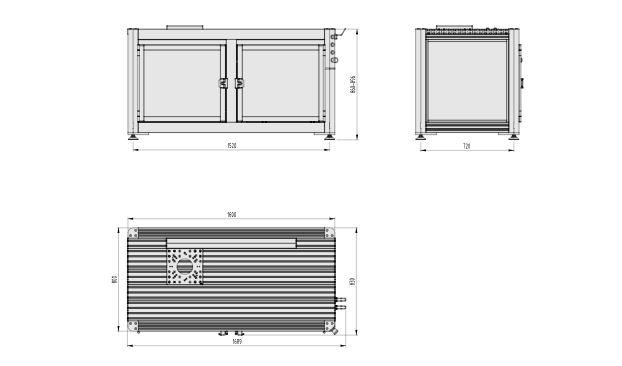

Dimensions
1600x800 mm

亮點

https://a.storyblok.com/f/298593/696076d8de/bild1.svg

Notification

Note: Depending on the scaling of the solution, operating mode and robot model, the stability and design must be checked. On request, item will be happy to help you adapt this application to the individual requirements of your project.

https://a.storyblok.com/f/298593/06d08248aa/2024-09-20_11_19_16-roboter-arbeitsstation_f_r_den_station_ren_einsatz___item_und_15_weitere_seiten_.jpg

Technical details

  • Robot connection with item robot mounting plates for various robot manufacturers and models

  • Lockable base cabinet with two doors for robot applications

  • Secure cable routing in high-quality aluminum profiles with integrated cable duct

  • Base enclosure with suspension for the control unit, battery, etc.

  • Operating elements such as start/stop or emergency stop switch integrated into the frame

  • Frame prepared for mounting sensors and other accessories

使用 RBTX 建置的低成本解決方案
