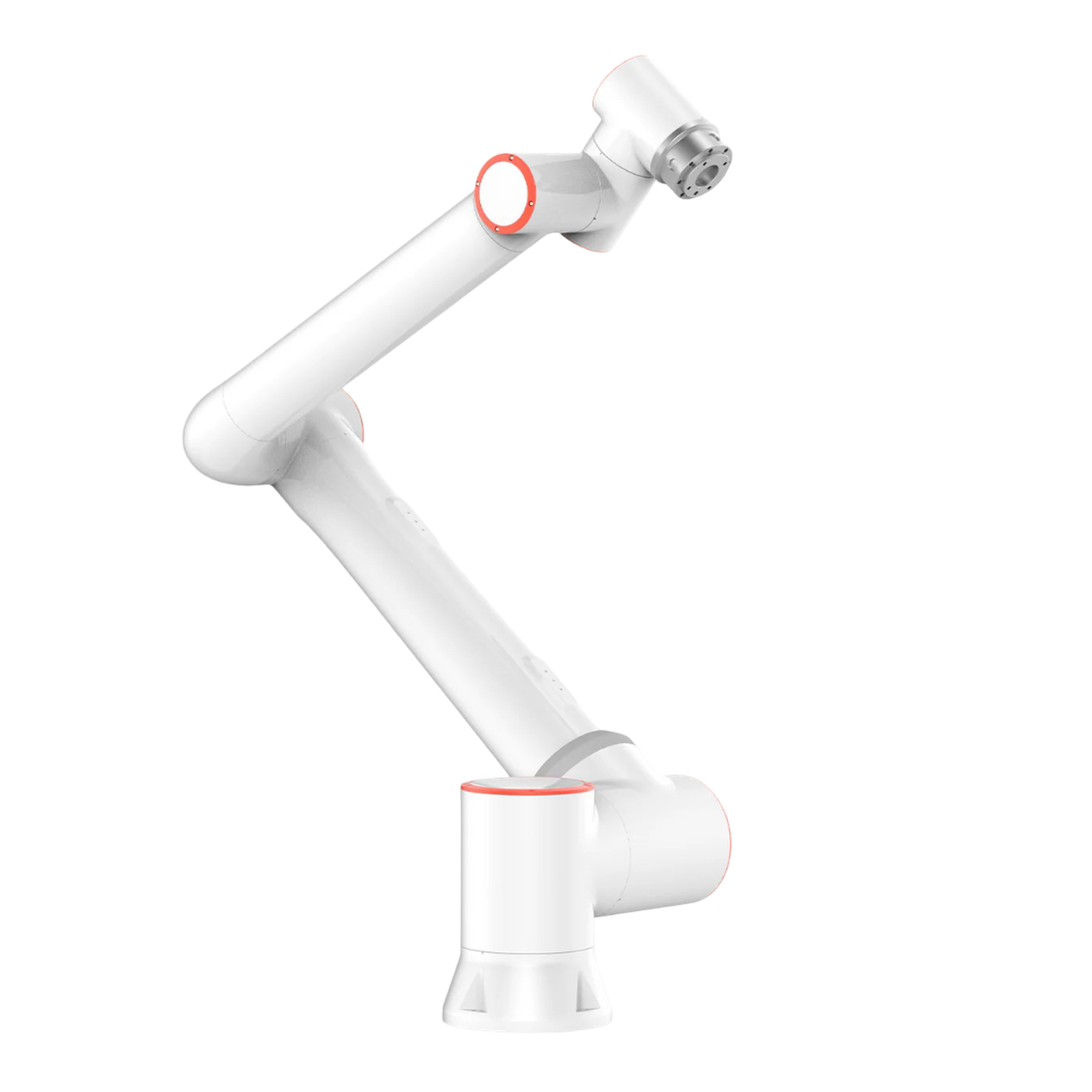

Fairino FR10 | 6DOF | 1400mm | 10kg

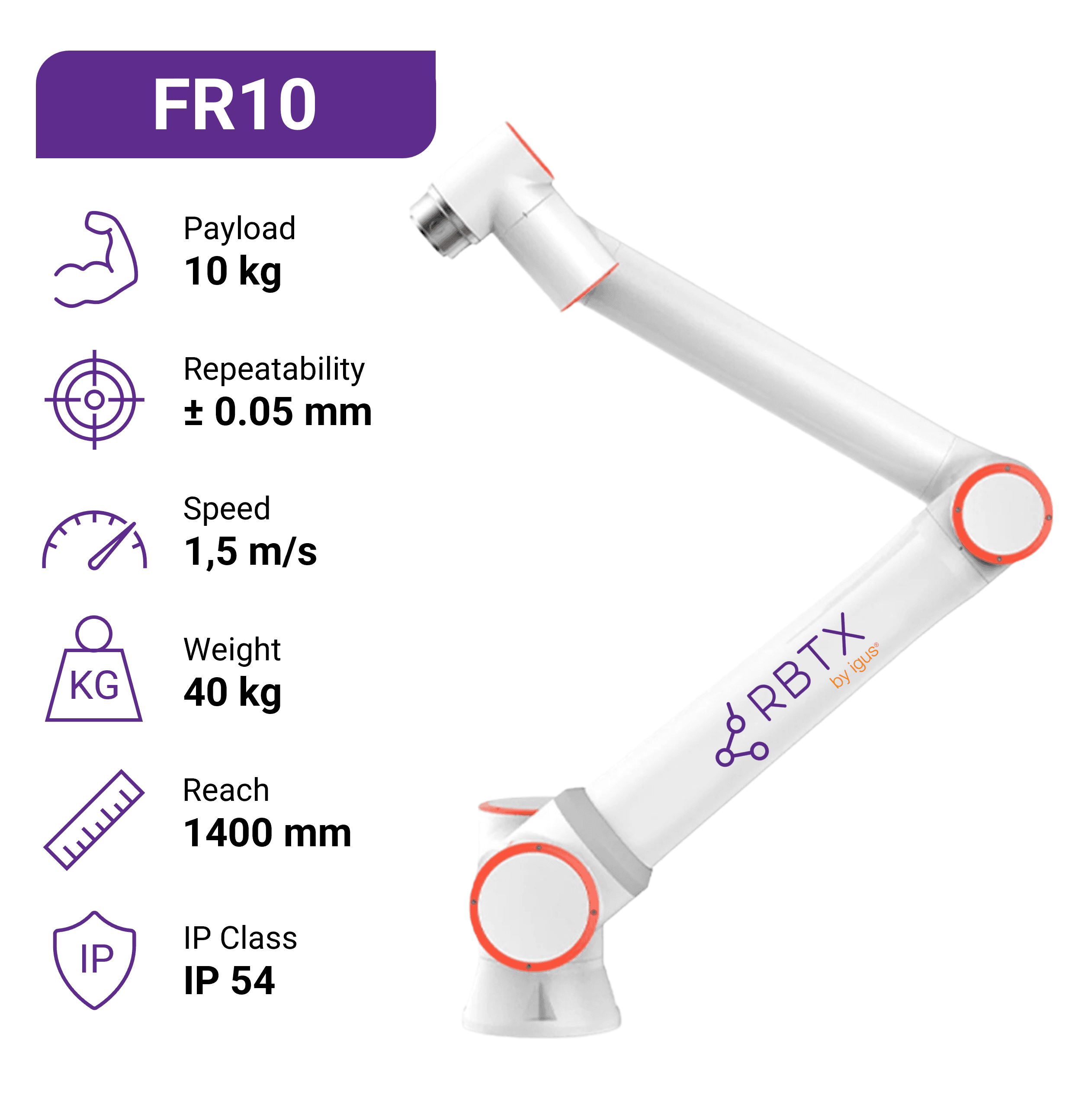

The FAIRINO FR10 IP65 is a powerful 6-axis collaborative robot designed for demanding automation tasks in production environments exposed to dust or water. With a rated payload of 10 kg, a reach of 1,400 mm, repeatability of ±0.05 mm, and TCP speeds of up to 1.5 m/s, it combines payload capacity, workspace coverage, and dynamic performance. The robot arm, weighing approximately 40 kg, can be mounted on the floor, wall, or ceiling. Its IP65 protection rating extends its application range beyond IP54 by providing enhanced protection against dust and water. This makes the FR10 IP65 suitable for robust handling, packaging, and machine tending processes that require precision and reliable operation under more demanding environmental conditions.

The FAIRINO FR10 IP65 is suitable for machine tending, material handling, packaging, palletizing, assembly, quality inspection, and vision-guided pick-and-place processes. With its 1,400 mm reach, it can access deep machine interiors, larger fixtures, or multiple positions within a cell. Its 10 kg rated payload enables the handling of larger workpieces and the use of more capable grippers. The IP65 rating expands the range of applications to environments with dust, moisture, or suitable cleaning processes. For total loads exceeding 10 kg including tooling and workpiece, exposure to aggressive media, high-pressure cleaning, very high process forces, or particularly demanding accuracy requirements, technical suitability should be assessed separately.

The FAIRINO FR10 IP65 can be configured via a browser-based web interface or a 10.1-inch teach pendant. Motions can be taught directly on the robot and combined into automated workflows using the graphical user interface. SDKs for C#, C++, Python, ROS, and ROS 2 are available for custom applications. TCP/IP, Modbus TCP, and Modbus RTU, as well as digital and analog inputs and outputs, support the integration of external devices. PROFINET, EtherNet/IP, EtherCAT, and CC-Link are optionally available. To maintain the intended level of protection, the end effector, connectors, and cables must also be designed for the target environment; according to the manufacturer, the separately mounted controller continues to be rated IP54.

The FAIRINO FR10 IP65 is a suitable choice for companies looking to automate larger workspaces, move loads of up to 10 kg, and require enhanced protection against dust and water. Machine builders, system integrators, and manufacturing and logistics operations benefit from its 1,400 mm reach, ±0.05 mm repeatability, 1.5 m/s TCP speed, and open interfaces. Key factors for system design include total load, center-of-gravity offset, cycle time, workspace requirements, and environmental exposure. IP65 does not imply resistance to every cleaning or process medium. Collaborative operation must be evaluated for the complete application and requires a risk assessment covering the robot, tooling, workpiece, and process.

Through the RBTX Marketplace, the FAIRINO FR10 IP65 can be combined with suitable grippers, vacuum systems, cameras, force sensors, safety technology, feeding systems, pedestals, and other peripheral equipment. This enables the creation of a coordinated solution for machine tending, material handling, packaging, assembly, inspection, or palletizing in more demanding environments. To ensure a reliable overall system, the end effector, connectors, and cables must also be protected appropriately. Alternatively, the FR10 IP65 can be configured as a complete robotic cell including controller, base frame, and protection concept. RBTX supports the selection of compatible components and helps reduce integration risks from planning through to a productive automation solution.
