SCHUNK - Magnetic gripper EMH, size: RP 036, electric

SCHUNK GmbH & Co. KG
末端執行器
‌
產品料號: RBTX-SNK-0076
EMH is an electropermanent magnetic gripper for energy-efficient handling of ferromagnetic workpieces. It ensures reliable holding force retention in the event of an emergency stop. Its compact design, low weight and high forces make it reliable and highly flexible.
通常交貨時間： 3 週
‌
Max Gripping force
530
N
Weight
1
kg

亮點

https://a.storyblok.com/f/298593/fc10cdc61d/rbtx_tool_icon_v1_lil_-svg.svg

Technical details

  • Holding force [N] - 530

  • Magnetic surface [cm²] - 6.08

  • Payload with horizontal magnetic surface [kg] - 8.5

  • Payload with vertical magnetic surface [kg] - 3.5

  • Module temperature increase at 5 activations/minute [°C] - 10

  • Module temperature increase at 15 activations/minute [°C] - 25

  • Activation time [ms] - 300

  • Min. ambient temperature [°C] - 5

  • Max. Ambient temperature [°C] - 50

  • Dead weight [kg] - 1

  • Protection class IP - 52

  • Rated voltage [V] - 24

  • Voltage type - DC

  • Max. Current Power [A] - 3.1

  • Max. Current Power [A] - 0.15

  • Controller electronics - integrated

https://a.storyblok.com/f/298593/4427329c88/2023-07-27_16_41_47-fwebp-b1440__1315__1440__und_9_weitere_seiten_-_gesch__ftlich_____microsoft_edge.jpg

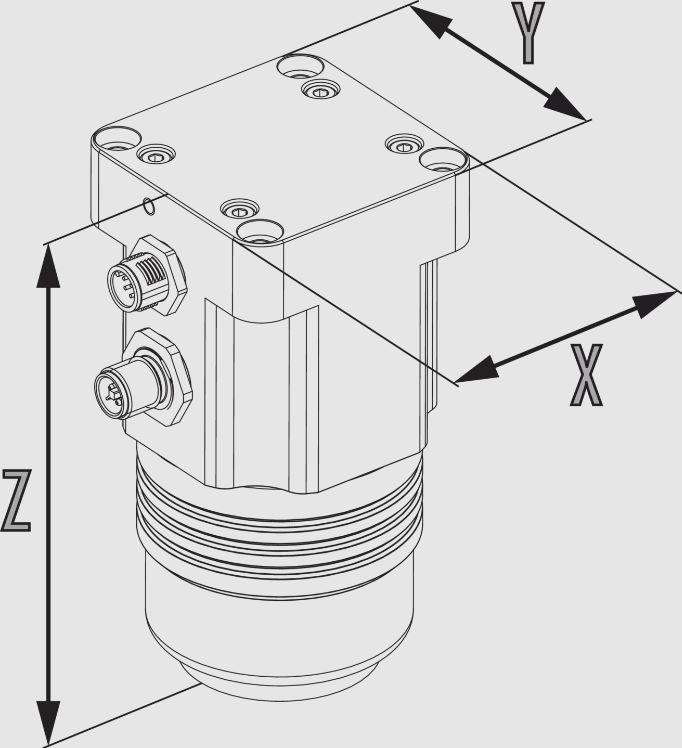

尺寸

https://a.storyblok.com/f/298593/d39b511f8e/bild1.svg

General notes on the series

使用 RBTX 建置的低成本解決方案

下載

CAD file
Operating manual
EMH-RP 036 Magnetic field evaluation document
