1 / 3TruLifter URCaps Kit
Hardware Price: On request
DOF
6
Construction
with 7th axis
Precision
High

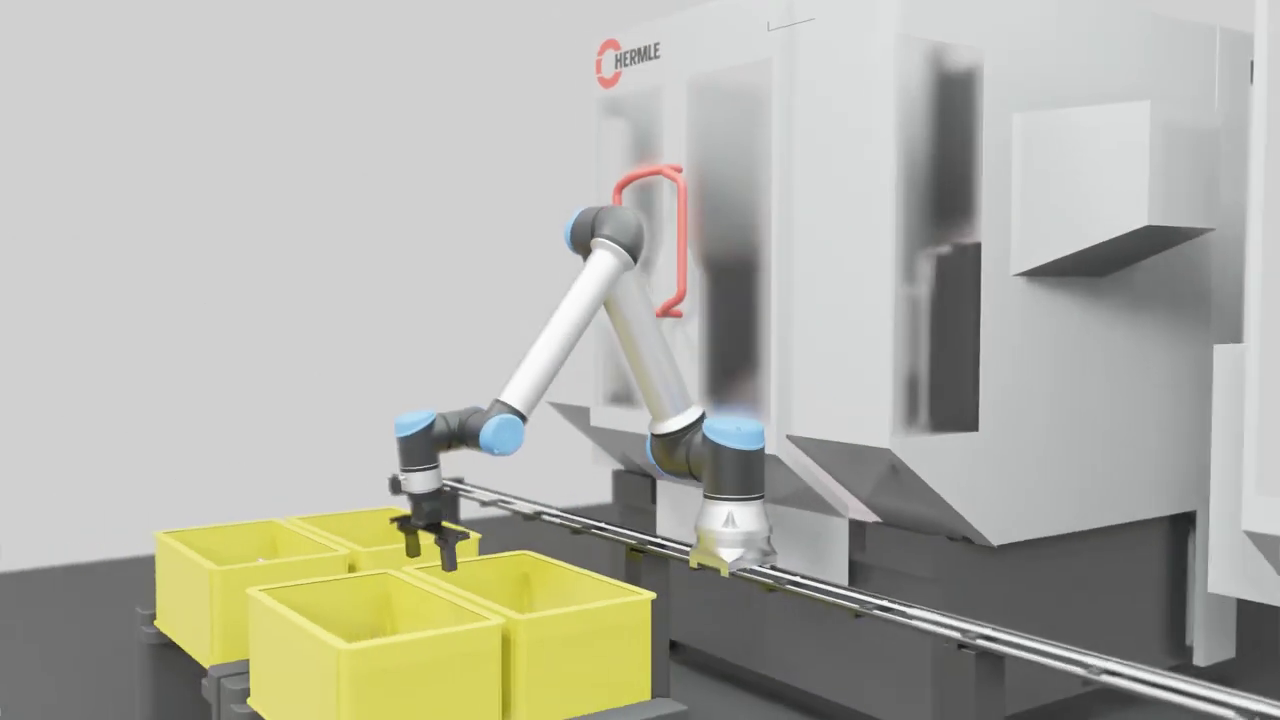

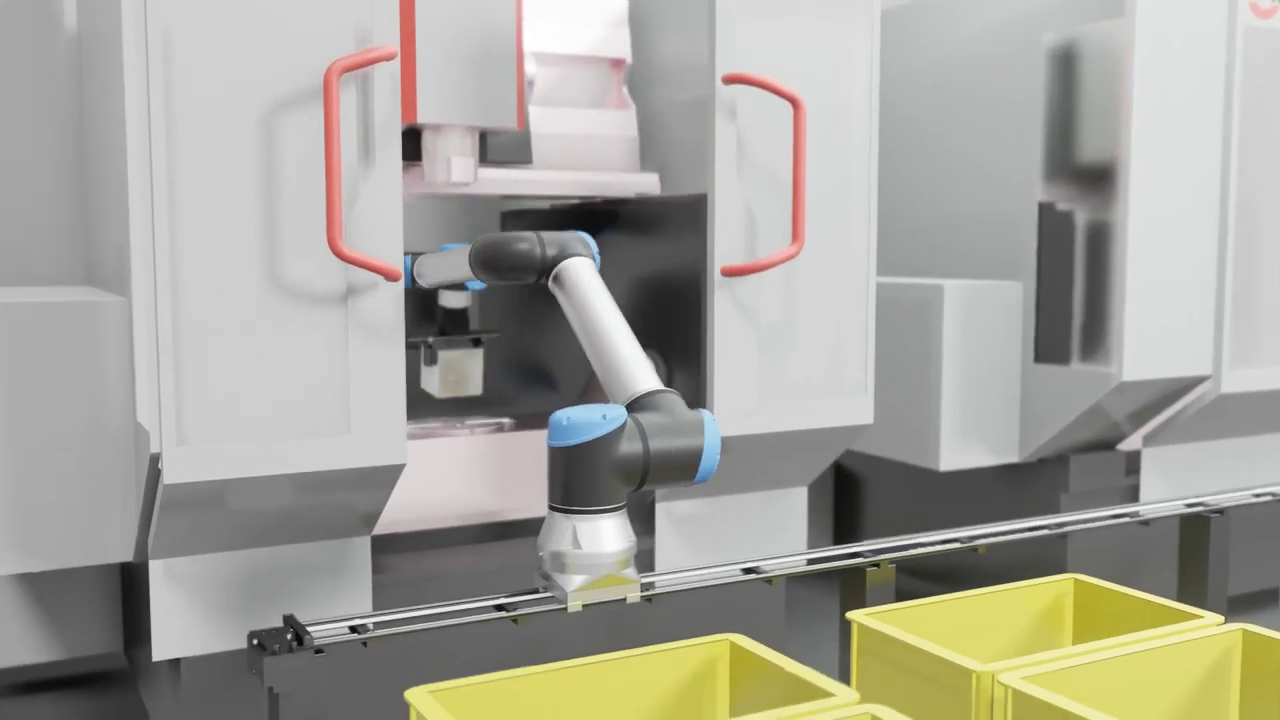

This URCap shows how the loading and unloading of machine tools can be automated in combination with the Trulifter. A UR jointed-arm robot moves back and forth on a seventh axis in front of the two machines, picks out the workpieces and sorts them into the boxes. The UR5e and the Trulifter communicate via software, and the Trulifter then moves the crates away.
The UR5e is a collaborative 6-axis robot with a reach of 850 mm and a dead weight of 20.6 kilograms. The maximum payload that can be picked up is 5 kilograms. The Cobot can be equipped with various grippers, camera systems or even accessories such as a drylin seventh axis. It can be used in a wide variety of areas, from manufacturing to the laboratory.
1 Component
On request
